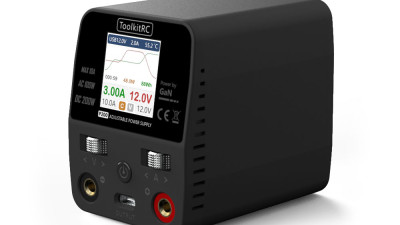

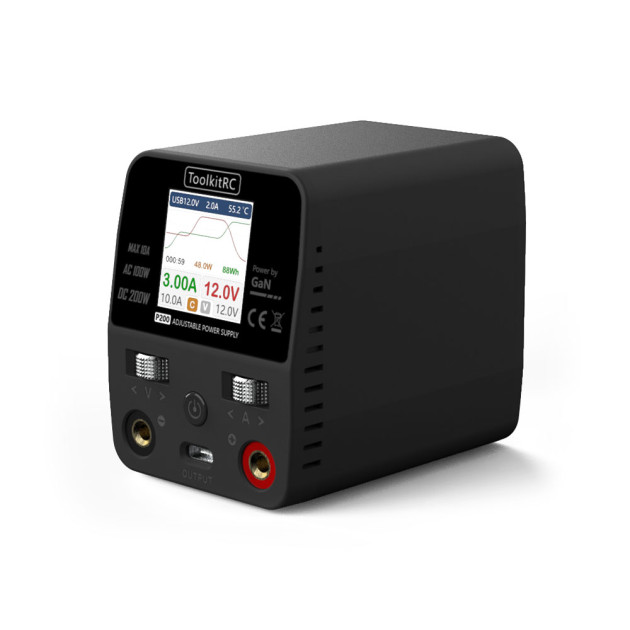

ToolkitRC P200 V2 is a handy little DC voltage and current source. It comes in handy especially when testing electronics or when turning on the drone for the first time. Thanks to the possibility of limiting the maximum current, the power supply also serves as a smoke stopper. P200 also has a USB-C connector with fast charging support up to 65W.
You can plug the P200 into a wall outlet or power it from another DC power source in the 7-28V range. You can then select a constant voltage output in the 1-30V range or a constant current output in the 1-10A range. Power is limited to 100W when powered from a wall outlet and to 200W when powered through a DC port. All information is clearly displayed on the 1.54" display with 240x240px resolution.
Key Features
- Input voltage: AC 100-240V / DC 7-28V
- Output voltage: 1-30V
- Output current: 1-10A
- Output power: 100W (AC) / 200W (DC)
- Voltage/current source mode
- USB-C protocol: PD 3.0/PD2.0/PPS/QC4/QC3.0/QC2.0/AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
- Size: 110x63x78mm
- Weight: 425g
- Display: IPS 1.54" 240x240px
- Output port: 4mm Banana
- USB port: USB-C 65W
Package Includes
- 1x P200 V2 power supply
- 1x USB cable
- 1x XT60 cable
- 1x Banana cable
- 1x Network cable (EU)
