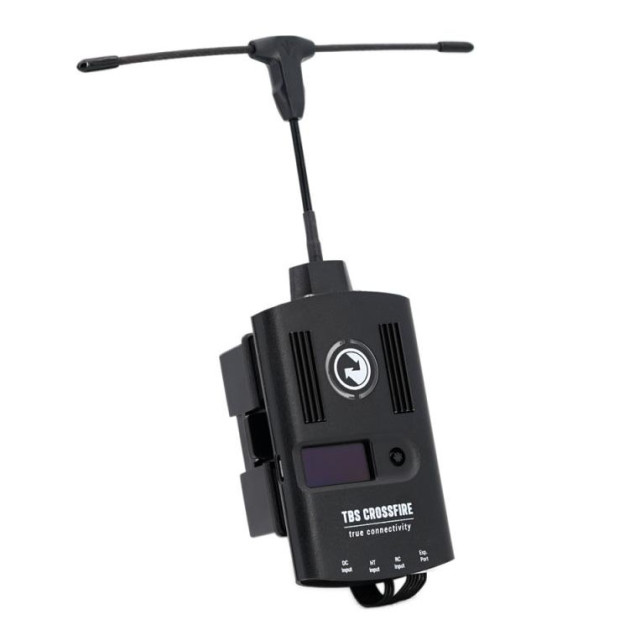

The TBS Crossfire is a long range R/C system built on the latest RF technologies, capable of completely reliable two-way communication and unprecedented control range. Plug-n-Play solution with support for JR shachets RC transmitters (e.g. Radiomaster TX16/Boxer) allows easy installation in seconds. With -130dB sensitivity, full RF diversity and all supported features, the TBS Crossfire is one of the best long range RC systems.
Crossfire delivers more than just unmatched control range over tens of kilometers: telemetry, jamming resistance, connectivity with smart devices, ease of use, SBUS and CRSF protocol support.
Telemetry
As a modern R/C link, Crossfire has built-in telemetry. Two-way communication opens up new possibilities. Update firmware, set up a channel for video transmission or adjust flight control parameters such as PIDs. Adaptive bandwidth controls the transmission rate or optimizes the maximum range. CRSF is the patented TBS communication protocol between Crossfire and the controller. It provides very low latency with incredible bandwidth.
Manual and Software Updates
Key Features
- long range, adaptive and robust RC control system for your aircraft/drone
- two-way communication link with full telemetry
- self-healing & frequency hopping (DSSS, FHSS)
- adaptive bandwidth control and optimization of range and transmit power
- serial modem capable of transmitting MAVLink or other serial protocols
- very easy installation and configuration thanks to built-in display
- low latency, 150 Hz update rate
- ability to use many crossfire systems at once (10 or more)
- selectable RF power from 10mW to 2W
- external input for head-tracking
- transmitter's LED displays link status, OLED display then facilitates configuration
- software updates via RF link
Technical Specifications
- frequency bands: 868 MHz (EU) / 915 MHz (USA, Asia, Australia)
- input voltage: 3.5 - 13V
- power: 1.1W (@ 10mW) - 3.2W (@ 2000mW)
- dimensions: 55 x 89 x 15 mm
- weight: 76g
Package Includes
- TBS Crossfire Transmitter
- TBS Crossfire JR Adapter
- TBS Crossfire Stock Tx Antenna
- Crossfire Futaba cable
- Crossfire Graupner cable
- Crossfire PWM Pigtail
- Crossfire JST to XT30 cable
