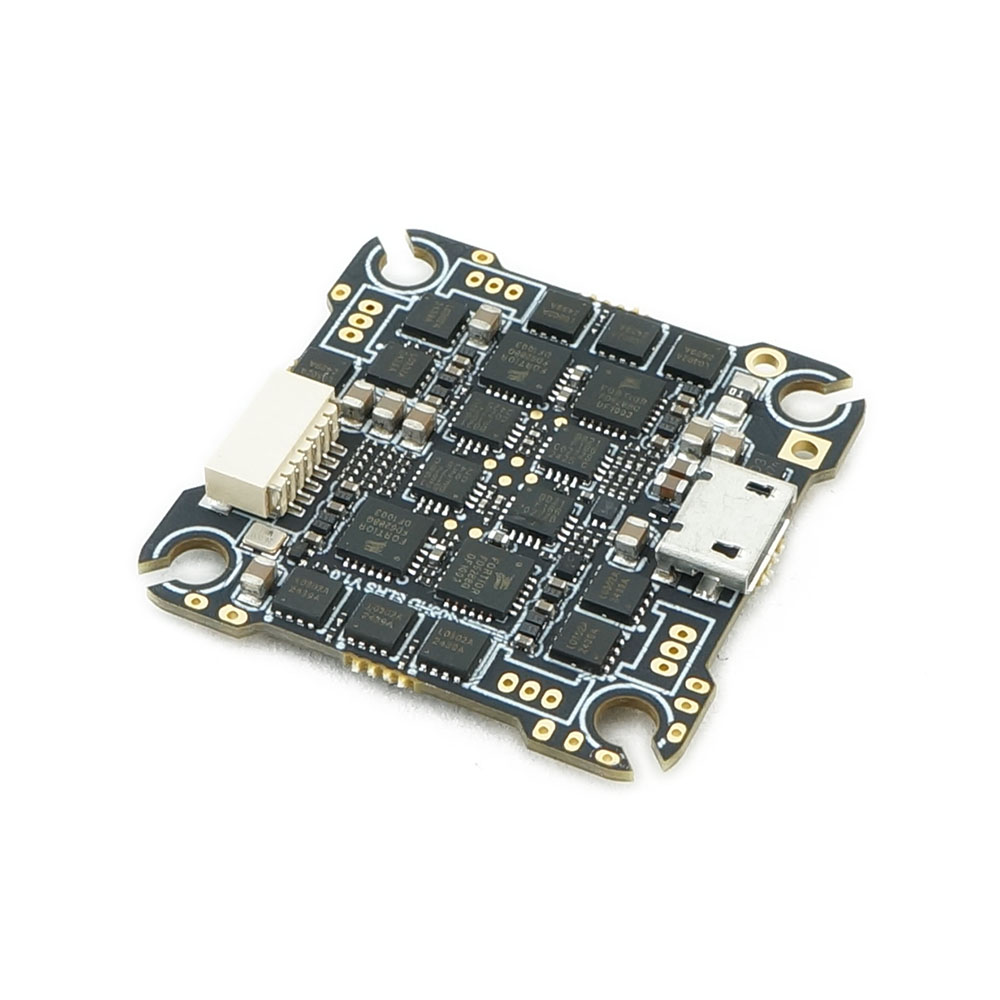

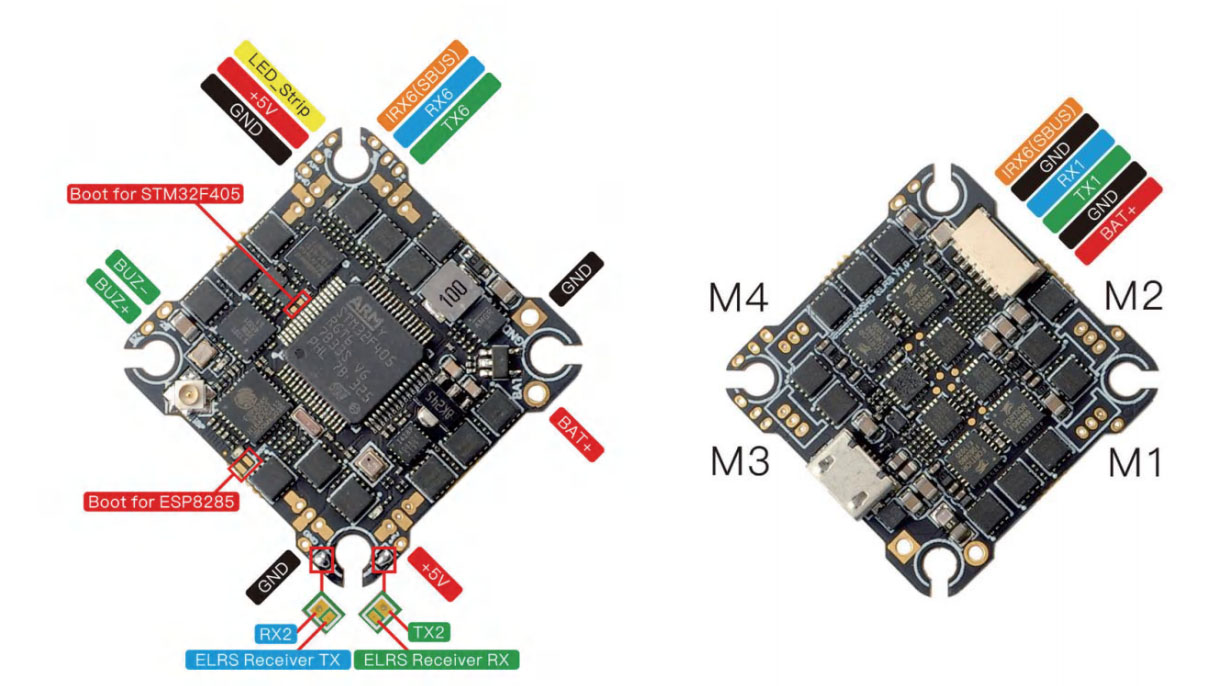

Caddx Super F405HD is an AIO board designed for smaller 2-3" drones powered by a 2-4S Lipo battery. The board integrates a flight controller with an F405 processor, 20A ESCs running BlHeli_S/Bluejay firmware, an integrated UART ELRS receiver, 8MB Blackbox memory, and a 5V BEC. The flight controller uses the ICM42688 gyro and includes a BMP280 barometer for altitude measurement. The ELRS receiver’s antenna is connected via an IPEX1 connector. The board allows for the connection of motor plug connectors for easy wiring.
This board does not include an OSD chip and is primarily intended for drones with digital video transmission.
Key Features
- Power supply: 2-4S Lipo
- MCU: STM32F405RGT6
- Gyro: ICM42688
- Baro: BMP280
- ESC current: 20A
- ESC type: 8bit
- Receiver: UART ELRS
- Blackbox memory: 8MB
- Mounting holes: 25.5x25.5mm M2
Package Includes
- 1x Board
- 1x XT30 with cable
- 1x 2.4GHz antenna
- 1x Capacitor
- 1x Softmount kit
- 1x Screw set
- 1x Connector set
