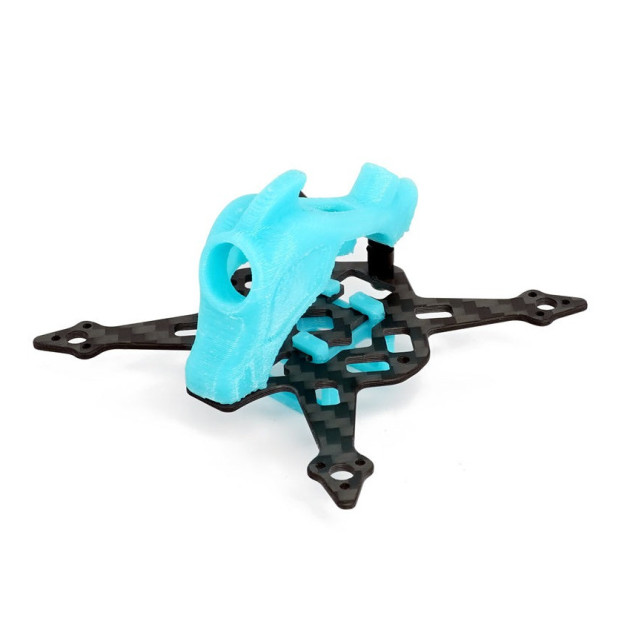

Sub250 NF16 is a small toothpick frame for 1.6" (40mm) propellers. A drone of this size is ideal for flying in a garden or park or even indoors. The frame can accommodate classic AIO boards with a hole distance of 25.5x25.5mm. Diagonal motor spacing is 77mm. The bottom plate is milled from 1.5mm thick carbon. The arms are prepared for motors with three 1.4mm diameter holes.
Key Features
- Motor diagonal distance: 77mm
- Bottom plate thickness: 1,5mm
- Mounting holes for FC: 25,5x25,5mm
- Mounting holes for motors: 3x M1.4 Ø6.6
- Maximum propeller size: 40mm (1.6")
- Size: 65x65x41mm
- Weight: 8.3g (including 3D printing)
Package Includes
- 1x Frame
