SpeedyBee F405 Mini

In Stock
€ 35,09

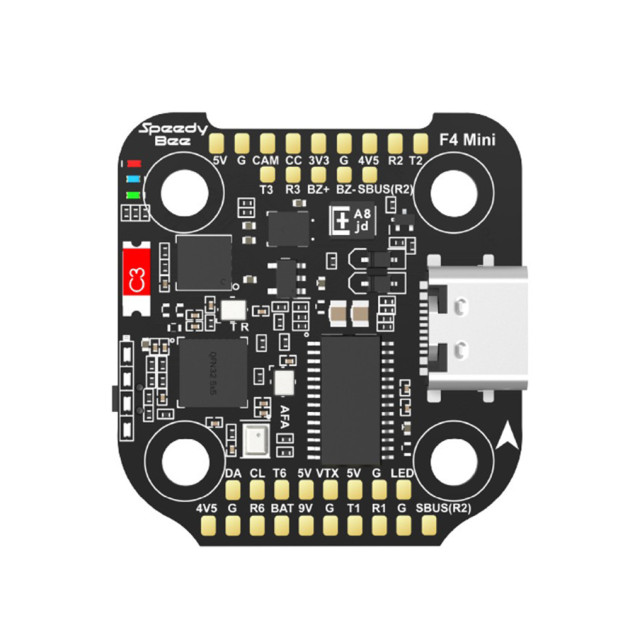

Speedybee F405 Mini is a flight controller suitable for 2-4" drones. The controller is packed with features. The basis of the FC is F405 processor with a ICM42688P gyro. The main advantage of the board is the integrated bluetooth module for wireless setup, integrated barometer. There is a 5V and 9V BEC as well as 8MB of memory for the blackbox. An interesting feature is also the 4 LEDs on the edge of the board that indicate the battery status. This way you can see at a glance if you are putting a discharged battery in the drone. Thanks to two softmount kits, the board is compatible with both M2 and M3 screws.

Manual

Key Features

  • MCU: STM32F405
  • IMU: ICM42688P
  • USB: USB-C
  • Integrated barometer
  • BLE Bluetooth: MSP-UART4 115200 baudrate
  • Blackbox: 8MB
  • Input voltage: 3-6S
  • BEC: 5V@2A, 9V@3A
  • I2C outputs
  • Mounting holes: 20x20mm M2/M3

Package Includes

  • 1x Control unit
  • 1x Cable set
  • 2x Softmount set (M2/M3)
