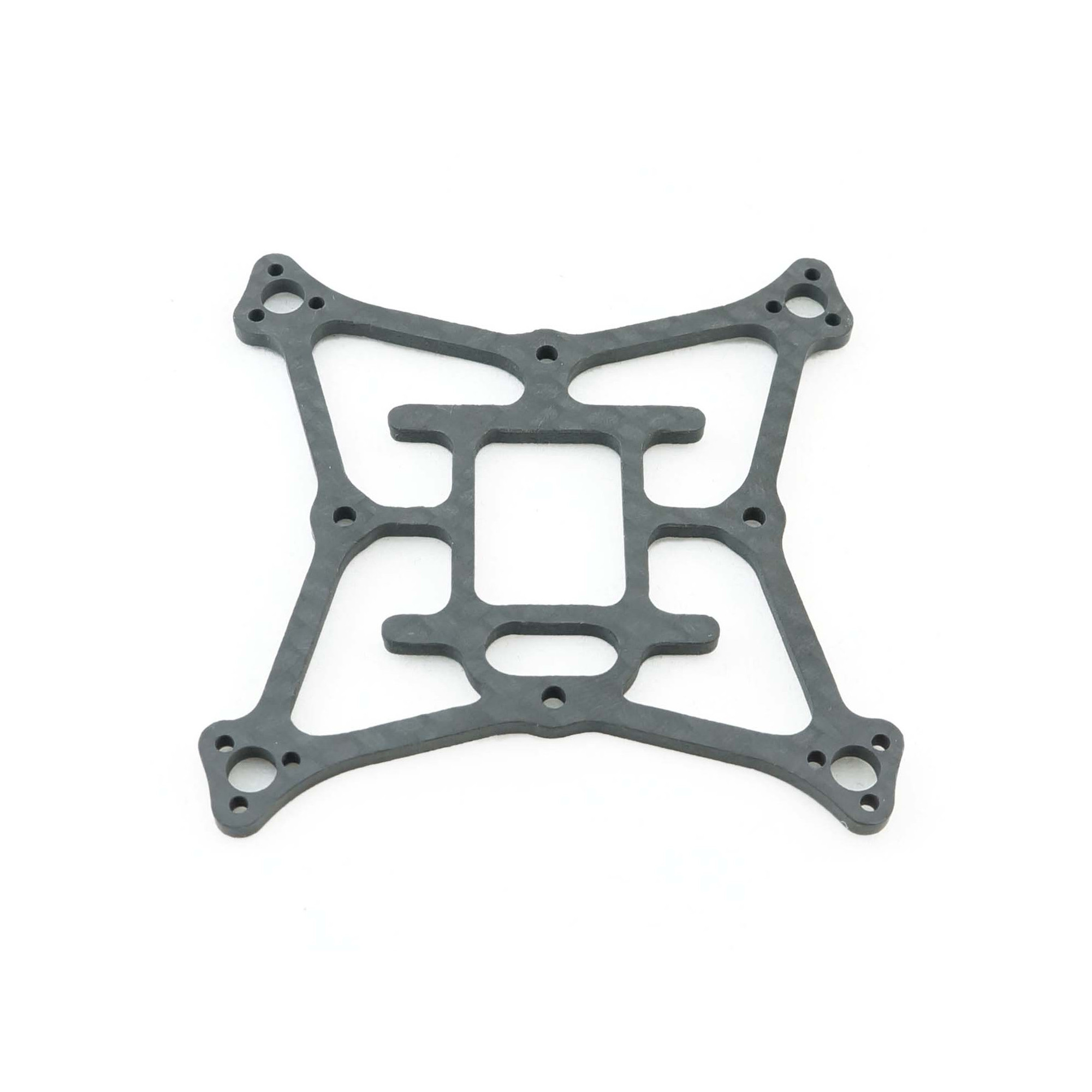

Rotorama Papafa is a carbon fiber frame designed for building a small Toothpick drone. The frame is cut from 2mm thick carbon fiber and weighs only 3.2 grams. It can be used to convert Tinywhoops like the Mobula 6 by replacing the plastic frame with a carbon fiber bottom plate. The frame accommodates propellers ranging from 31-35mm in size. With some canopies, 40mm propellers can also be used. The frame includes a cutout for AIO boards with a USB connector on the bottom side. The battery can be secured using rubber bands, which can be attached to the designated mounting points.
Key Features
- Diagonal motor distance: 70mm
- Weight: 3,2g
- Carbon thickness: 2mm
- Max propeller size: 31-40mm (According to canopy)
- Mounting holes for AIO plate: 25,5x25,5mm M2
- Mounting holes for motors: 6,6mm M1.4
Package Includes
- 1x Carbon plate
