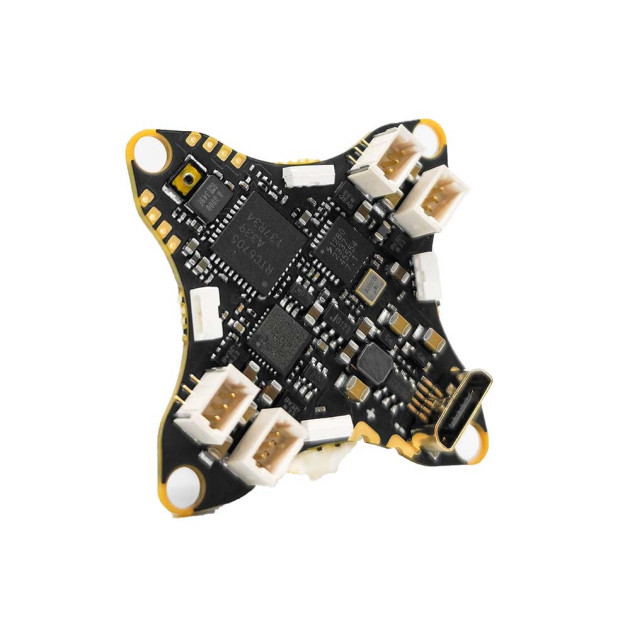

HummingBird V3.1 AIO is a board combining flight controller, ESCs, RC receiver and analog video transmitter in one. The board supports 1S battery power and is designed for small Tinywhoops and Toothpicks.
The basis of the board is a flight controller with F411 processor and BMI270 gyro. The ESCs use Bluejay firmware and can handle current up to 12A. The integrated SPI ELRS receiver uses the 2.4GHz band. The antenna is connected via a MHF3 connector. The Video transmitter transmits at a maximum power of 25mW. The antenna to the video transmitter is connected via a u.FL connector. The board also includes 4 LED diodes to add a unique look to the drone. There is a pre-soldered PH2.0 connector on the board.
Key Features
- Power supply: 1S
- Processor: STM32F411
- Gyro: BMI270
- Video transmitter power: 25mW
- Receiver: SPI ELRS 2.4GHz
- ELRS antenna connector: MHF3
- VTX connector: u.FL
- Maximum ESC current: 12A
- ESC Firmware: Bluejay
- Size: 29x29x7.6mm
- Mounting holes: 25.5x25.5mm
- Weight: 4.57g (including antennas and battery connector)
Package Includes
- 1x AIO Board
