Matek H743-Slim V3

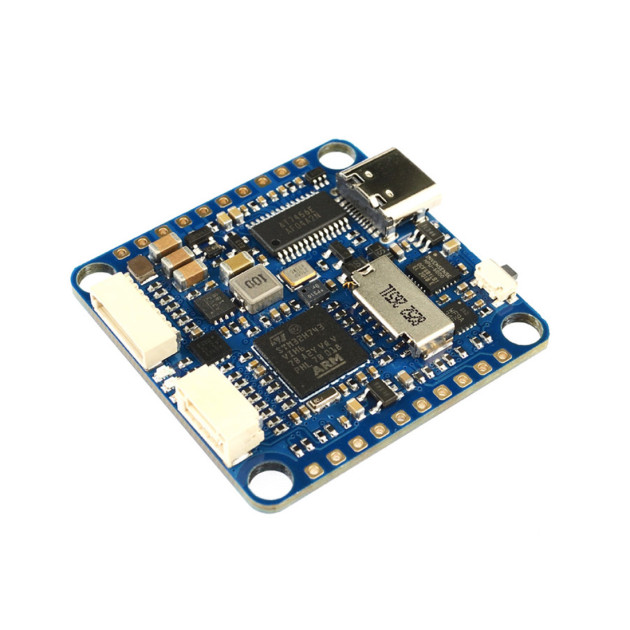

Matek H743-Slim V3 is a high-end flight controller for FPV dorne or aircraft that will not limit you in anything. The board supports Betaflight, iNav or Ardupilot firmware (MATEKH743). At the heart of the controller is a powerful H743 processor combined with a pair of gyroscopes, the ICM42688P and ICM42605, which complement each other for the best possible result. The board also includes a barometer, an OSD for analog video, and an SD card slot for logging blackbox data. With 12PWM outputs (+1x LEDs), the controller can also be used on larger multi-motor machines, octocopters with additional servos, or VTOLs. There are also 7x UART, 2x I2C, 1x CAN and 6x ADC inputs. These will be used especially with the more advanced Ardupilot. The board also allows connection of 2 analog cameras, which can be switched between, and switchable 5V/VBAT. Power can be supplied by 2-8S batteries with a battery voltage sensor (Vbat2) that supports up to 69V. The board design is also worth mentioning. All components are located from the top of the board. The bottom side is thus flat, which reduces the profile of the controller and makes installation easier.

Details

Wiring diagram

Board description
