iFlight BLITZ F7 V1.2
In Stock
€ 55,19

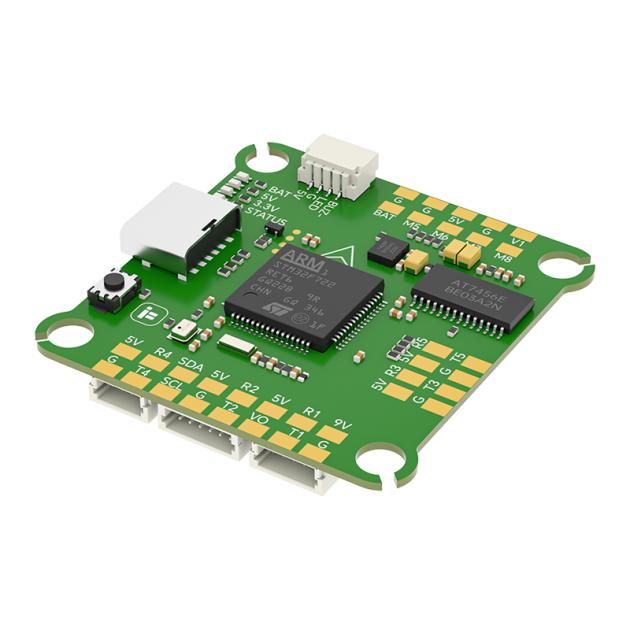

iFlight BLITZ F7 V1.2 is a high quality flight controller for freestyle and long-range drones. The board uses the F722 processor, ICM42688 gyro and DPS310 barometer. There's also 32MB of memory for the blackbox, 5V and 9V BECs, I2C bus for compass connections, and six UARTs. The flight controller has mounting holes 30.5x30.5mm and can be powered by 3-6S Lipo batteries. There are a number of connectors on the board for easy wiring without soldering.
Key Features
- Power supply: 3-6S Lipo
- MCU: STM32 F722
- Gyro: ICM42688
- Barometer: DPS310
- OSD chip: AT7456E
- Blackbox memory: 32MB
- Number of UARTs: 6
- BEC: 5V 2.5A / 9V 2A
- Number of motor outputs: 4
- I2C serial: SDA / SLA pads
- Mounting holes: 30.5*30.5mm
- Size: 36.5*35mm
- Weight: 7.8g
Package Includes
- 1x Flight controller
- 1x Softmount Set
- 1x Cable Set
