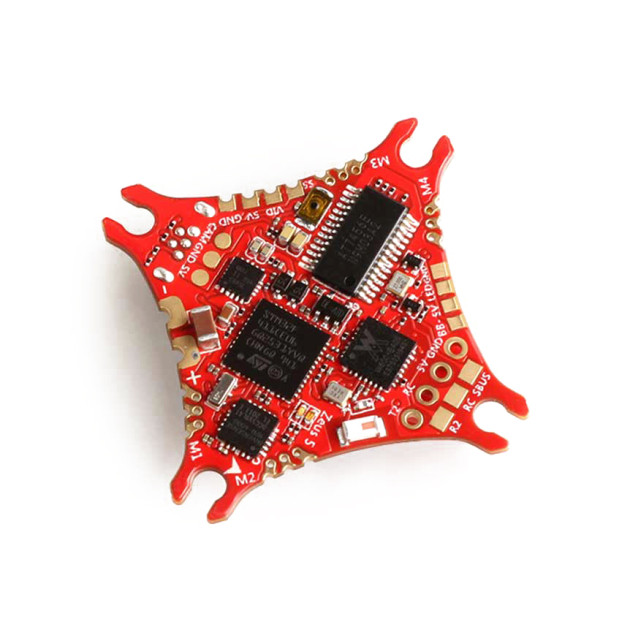

HGLRC Zeus5 AIO 1-2S BLS
Discontinued
€ 66,90
HGLRC Zeus5 is a flight controller with ESCs in one designed for small drones. The board uses an F4 processor along with 5A BlHeli_S ESCs and supports 1-2S batteries. The motors can be soldered directly on the board or you can use the connectors that are included in the package. An interesting feature is also the integrated Wi-Fi for easy setup.
You will find the wiring diagram here.
Key Features
5A BL_S ESC
- Input Voltage:1-2S
- FC Firmware:BF HGLRCF411(HGLR)
- ESC Firmware:BL_S
- Installing Hole:25.5X25.5mm.M2
- Dimensioms:41.5x41.5mm
- Weight:4.2g
F411 Flight Controller
- CPU:STM32F411
- OSD:Support
- BEC:5V/1A
- LED:Support
- BlackBox:NO
- UARTS:2
- Constant Current:5A
Package Includes
- 1x Board
- 1x Set of accessories
