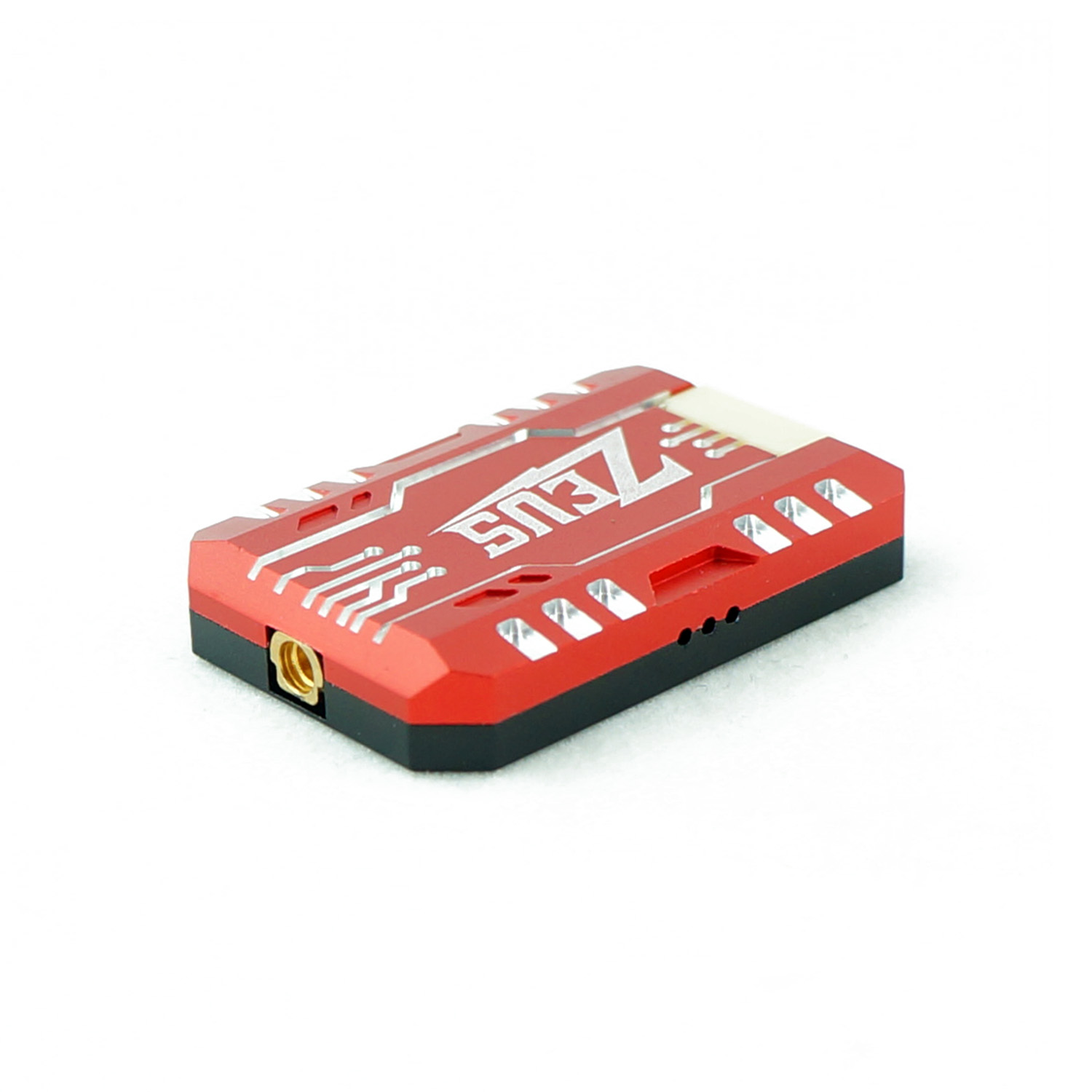

HGLRC Zeus VTX Pro is a top video transmitter designed for freestyle and long-range flying with a power of up to 1.6W. The video transmitter is covered in an aluminum case for better cooling and high mechanical resistance. There are 20x20mm M2 threads on the underside of the video transmitter, so the video transmitter can be attached to a stack. Thanks to the integrated microphone, is not only the image transmitted, but also the sound. The antenna is connected via the MMCX connector. The video transmitter can be powered directly from a Lipo battery with a voltage of 7-36V. There is also a 5V output for powering the camera. Control of the video transmitter is handled using buttons or a data cable via the IRC Tramp protocol.
Key Features
- Input voltage: 7-36V
- BEC: 5V@500mA
- Integrated microphone
- Power: 25/400/800/1600mW
- Connector: MMCX
- Mounting holes: 20x20mm M2 threads
- Size: 25x37x6,5mm
- Weight: 13g
Package Includes
- 1x Video transmitter
- 1x Cable
- 1x SMA pigtail 10cm
- 1x Linear antenna 80mm
