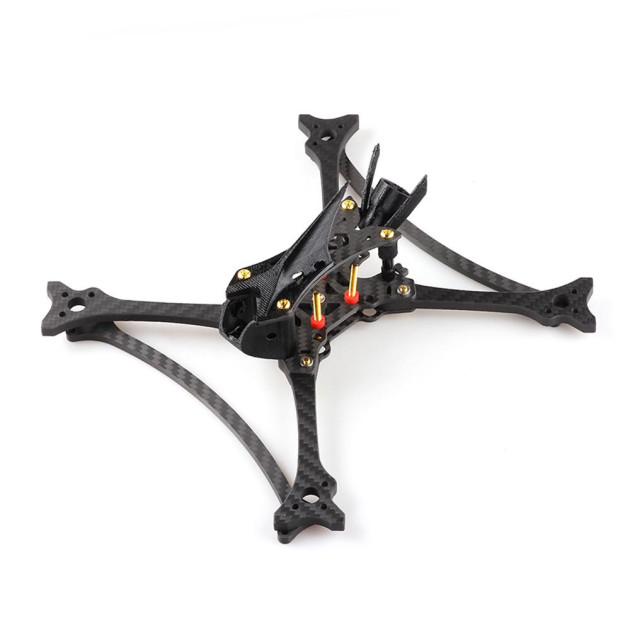

HGLR Wind 5 Lite V2 is a lightweight (69g) frame designed primarily for racing flying. The frame has a diagonal motor distance of 195mm and is milled from high quality Toray T700 carbon fiber, which is complemented by 7075 aluminum standoffs. The arms are milled from 5mm thick carbon and can be reinforced with 3mm thick side bars.
The frame has a 20x20mm mounting holes for stacks. A second pair of 20x20mm mounting holes is on the top plate, for easy attachment of an analogue or HDZero video transmitter. A 26mm in height is provided in the frame. Both the FPV camera and antenna are mounted in a 3D printed mount - a fixed 45° angle for the Foxeer Predator Nano camera is supplied with the frame. The frame also includes rubber to protect the stack from debris and FPV antenna.
Camera not included.
Key Features
- Diagonal motor distance: 195mm
- Size: 172.5x169x70mm
- Weight: 69.5g
- Mounting holes for stack: 20x20mm M3
- Mounting holes for VTX: 20x20mm M3 (top plate)
- Mounting holes for motors: 16mm M3
- Height for stack: 26mm
- Camera size: Nano (14mm)
- Arm thickness: 5mm
Package Includes
- 1x Frame
- 2x Lipo strap
- 1x Dustproof belt
- 1x RHCP antenna
- 1x 3D printing kit
