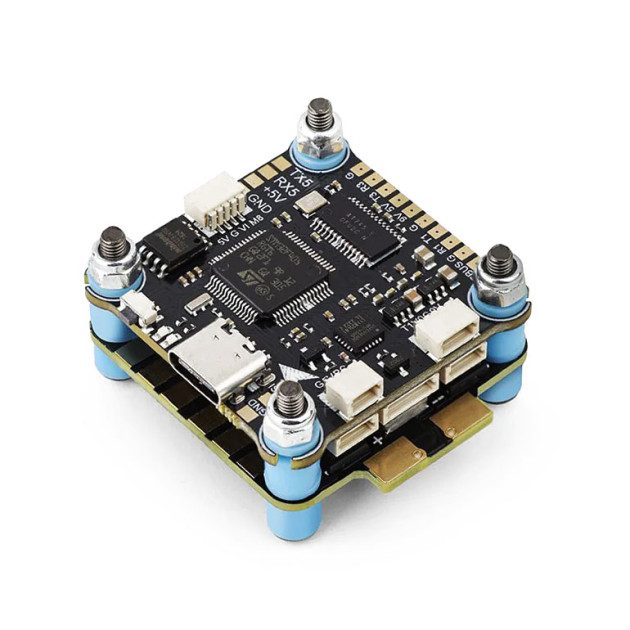

HGLRC Specter F460 BLS

HGLR Specter F460 is a flight controller and ESC combination suitable for 5" freestyle or racing drones.

The flight controller is based on the F405 processor and the reliable MPU6000 gyro. The board has 16MB memory for the blackbox, 9V and 5V BEC and an OSD for analogue drones. On the bottom side, the board has connectors for connecting digital video transmission, RC receiver, LEDs, ESCs and camera. This keeps the need for soldering to a minimum.

The ESC can be powered by 2-6S Lipo batteries, can handle current up to 60A. It uses the Bluejay firmware. The ESC connects to the flight controller via a connector, but solder pads are also available. The ESC also includes a current sensor.

Wiring diagram
