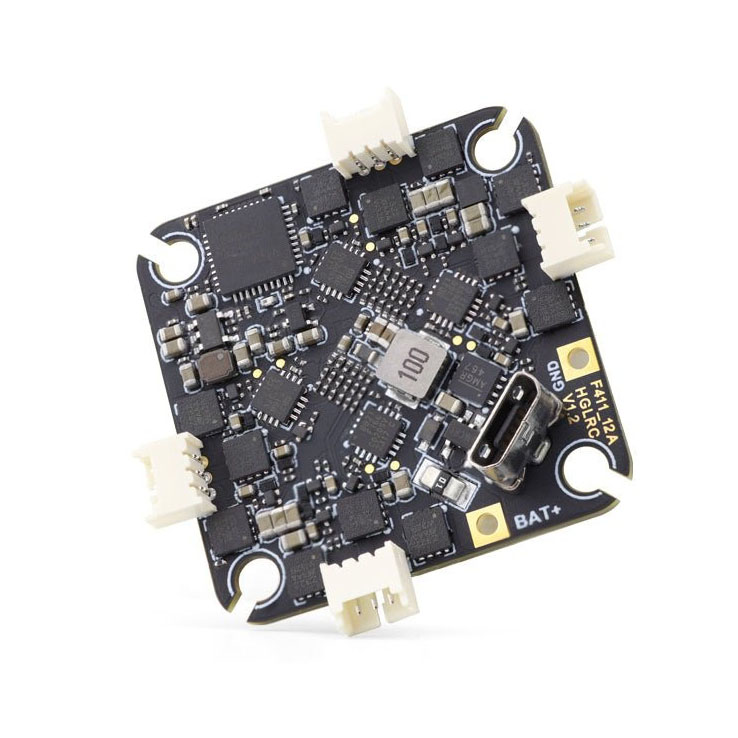

HGLRC Specter F411 12A AIO is a board containing a flight controller, ESCs, video transmitter and a UART 2.4GHz ELRS receiver. The board can be powered by 2-4S Lipo batteries, making it suitable for 2-3" Toothpicks and similar lighter drones. The board uses a flight controller based on the F411 processor and ICM42688P gyro. There is also a 5V BEC, 16MB of memory for the blackbox and a current sensor. The ESCs use Bluejay firmware and can handle current up to 12A. The ELRS receiver is connected via UART, so its functionality is not limited as with SPI receivers. The ELRS receiver uses an integrated SMD antenna. The board also includes an analog video transmitter with a power rating of up to 400mW. Connectors are provided on the board for direct connection of motors.
Key Features
- MCU: STM32F411
- MPU: ICM42688P
- Input voltage: 2-4S
- BEC: 5V/1.5A
- Blackbox memory: 16M
- Receiver: 2.4GHz ELRS UART2
- Current: 12A (15A short-term)
- ESC firmware: Z-H-30 (Bluejay)
- Video transmitter power: RCE/25/100/400mW
- Mounting holes: 25.5X25.5mm M2
- Size: 32x32mm
- Weight: 5.6g
Package Includes
- 1x AIO board
- 1x Capacitor
- 1x XT30 connector with cable
- 1x Linear antenna
- 1x Softmount kit
