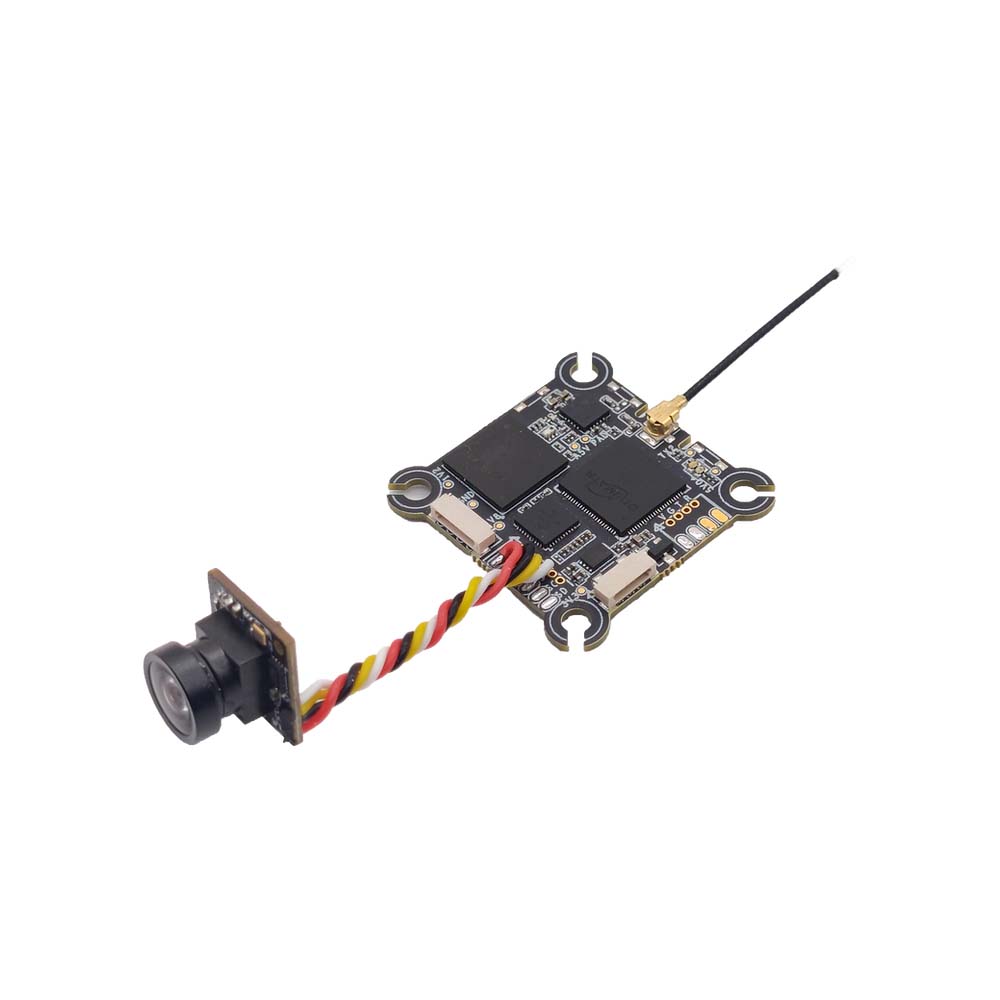

HDZero Eco Bundle is a combination of camera, video transmitter and antenna for the HDZero system. The Eco Bundle aims to offer digital transmission in HD quality with minimal latency at an affordable price as an alternative to traditional analog video transmission. The entire Eco Bundle weighs only 6.3 grams, making it particularly suitable for Tinywhoops and small 2-3" drones. The Eco Bundle is unique in its style of video transmission. It uses an analog camera with HD composite video output, which is then transmitted via digital HDZero transmission at 720p resolution. This eliminates the need for a delicate MIPI cable. The video transmitter can be powered by a 1-3S Lipo battery and will offer a maximum power output of up to 200mW. Mounting dimensions of the board are 25.5x25.5mm.
Use at least 5V 2A BEC when powering from a BEC.
