Happymodel SuperbeeF4 Lite 1S ELRS 2.4G

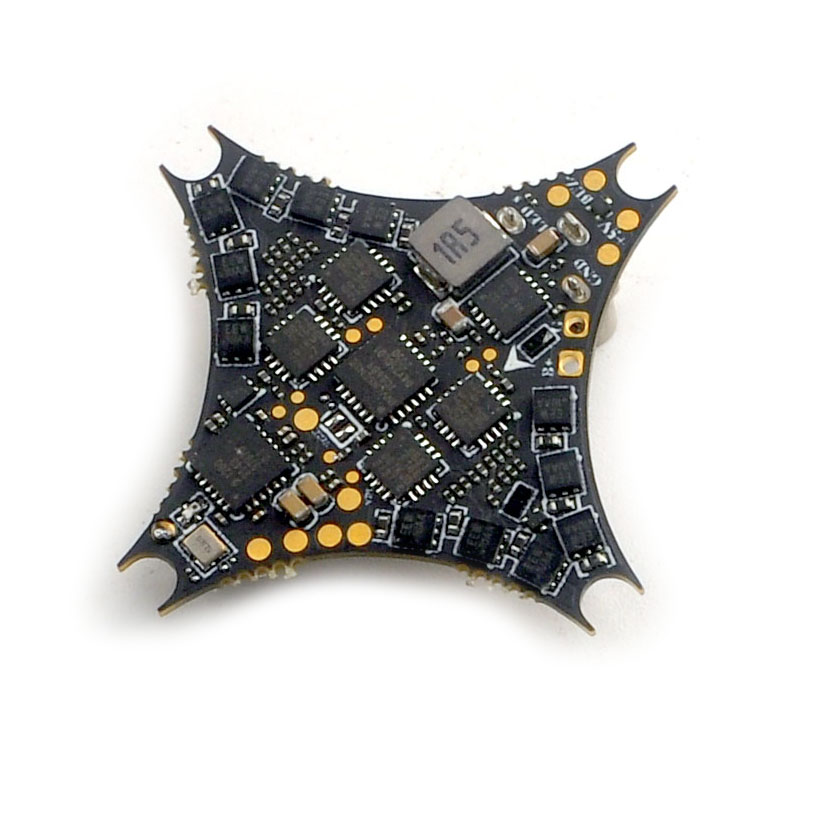

SuperbeeF4 Lite 1S Frsky is a board designed for small 1S whoops. The board includes a control unit, 5A BlHeli_S regulators and an integrated SPI ELRS receiver. The basis of the FC is the F411 processor supplemented by the BMI270 gyro. ESC with BlHeli_S firmware support 1S battery power and 5A current. They are thus suitable for motors of size 0802-1202. The receiver is an ELRS 2.4GHz connected via SPI. The receiver has an integrated linear antenna. The SPI receiver works with ELRS 2.0. Betaflight 4.4 is required for use with ELRS 3.0.

By default, the OSD is sent via MSP (for digital video transmission). If you want to use the board with analog video transmission, you need to switch the OSD with the "set osd_displayport_device = MAX7456" command and confirm with the "save" command. Then load the OSD font.
