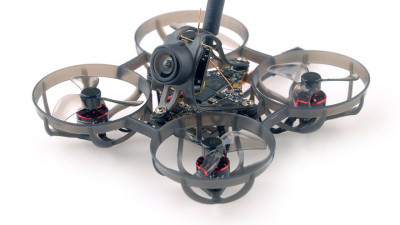

The Mobula 6 2024 is a Tinywhoop of classic 65mm size. Mobula is especially suitable for flying indoors, but you can also have fun with it in the garden or on the playground. The Mobula 6 2024 targets the lowest possible weight and is a lightweight variant of the classic Mobula 6. Without the battery, it weighs only 17.7 grams, making flying the drone completely safe. The covered propellers also contribute to safety. Brushless brushless motors ensure the long life of the Tinywhoop. The second version has motors connected via connectors.
Propulsion is provided by SE0702 28000Kv size motors in combination with Gemfan 1208-3 propellers. The video is provided by the FX17-B 800TVL camera in combination with OpenVTX video transmitter with power up to 400mW. The heart of the drone is then the SuperX F4 flight controller with F411 processor, integrated Serial ELRS receiver, 5A Bluejay ESCs and the aforementioned video transmitter. The antenna is connected to the video transmitter via a u.FL connector and can easily be replaced with another one. The board also includes a current and voltage sensor. There are UART ports on the board, so it is possible to connect an external RC receiver.
Recommended are 1S Lipo/LiHV batteries with 300-380mAh capacity and A30 connector.
Key Features
- Motor diagonal distance: 65mm
- Size: 81x81x37mm
- Weight: 18,2 (without battery)
- Receiver: UART ELRS + linear antenna
- ESC current: 5A
- ESC firmware: Bluejay v0.19.2
- Input voltage: 1S (2.9-4.35V)
- Antenna connector: u.FL
- Camera: FX17-B 1/3 CMOS 800TVL 4:3
- Motors: SE0702 28000Kv (1mm shaft)
- Propellers: Gemfan 1208-3
Package Includes
- 1x Drone
- 1x Propeller Set
- 1x Spare Canopy
- 1x Kit of small things
