Happymodel ELRS 2.4G EPW5

Discontinued
€ 16,40

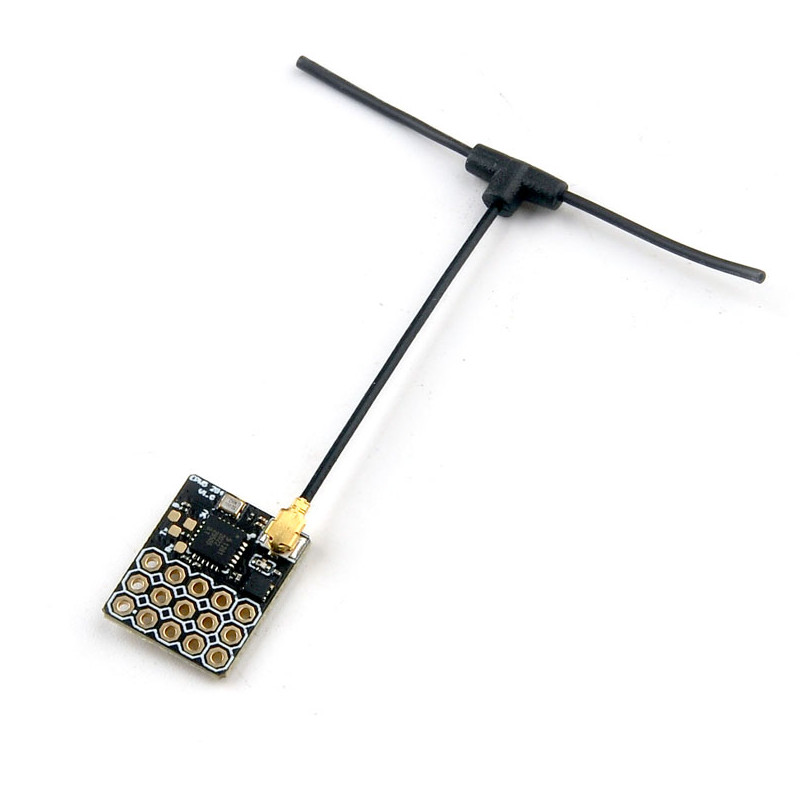

Happymodel ELRS 2.4G EPW5 is a receiver for 2.4GHz ELRS. ExpressLRS is an advanced open source RC system with long range, low latency, high refresh rate and lots of useful features. The Happymodel EPW5 receiver provides 5 PWM outputs. It is therefore particularly suitable for aircraft models without a FC. Firmware can also be uploaded to the receiver when the standard CRSF protocol is output. So if you later decide to add stabilization to your model, the receiver can still be used. The antenna is connected via the IPEX1 (u.FL) connector.

Key Features

  • Input voltage: 5V
  • Size: 17x14mm
  • Weight: 1,1g (bez antény)
  • Connector: IPEX1 (u.FL)
  • Frequency range: ISM 2.4GHz
  • MCU: ESP8285
  • RF module: SX1280(SX1281)IMLTRT
  • Output protocol: CRSF/ 5x PWM
  • CRSF Firmware: HappyModel_EP_2400_RX
  • PWM Firmware: DIY_2400_RX_PWMP

Package Includes

  • 1x Receiver
  • 2x Antenna
