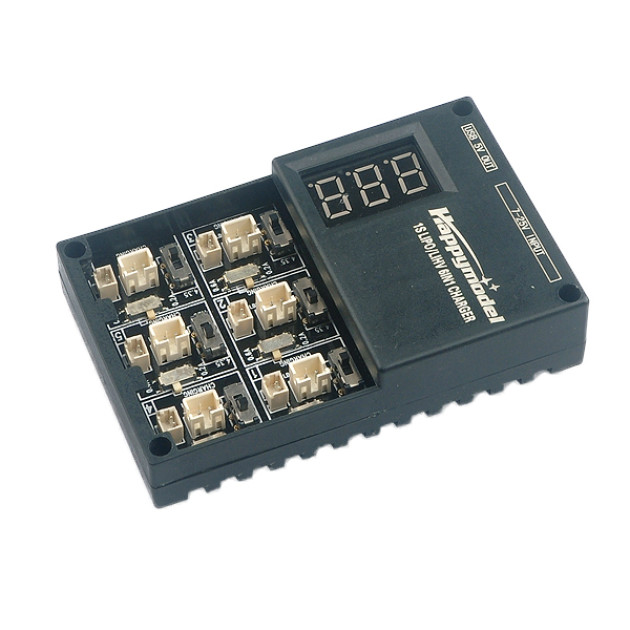

Happymodel charger for charging 6x 1S batteries at the same time. For each port, the terminal voltage can be set to 4.2V or 4.35V (for HV batteries). A current of 0.2 or 0.6A can also be set. The charger is powered from an external battery or source via an XT60 or coaxial DC connector. The input voltage is 7-22V. The charger also has a USB connector with 5V output. In addition to batteries, you can also charge, for example, an action camera or a transmitter.
Do not plug two batteries into the same port at the same time.
Key Features
- Size: 82x51x22mm
- Weight: 41g
- Connector: PH2.0/Molex Picoblade 1.25
- Input voltage: 7-22V (2-5S)
- Charging current: 0,2/0,6A
- Final voltage of battery: 4,2/4,35V +-0,5%
Package Includes
- 1x Charger
