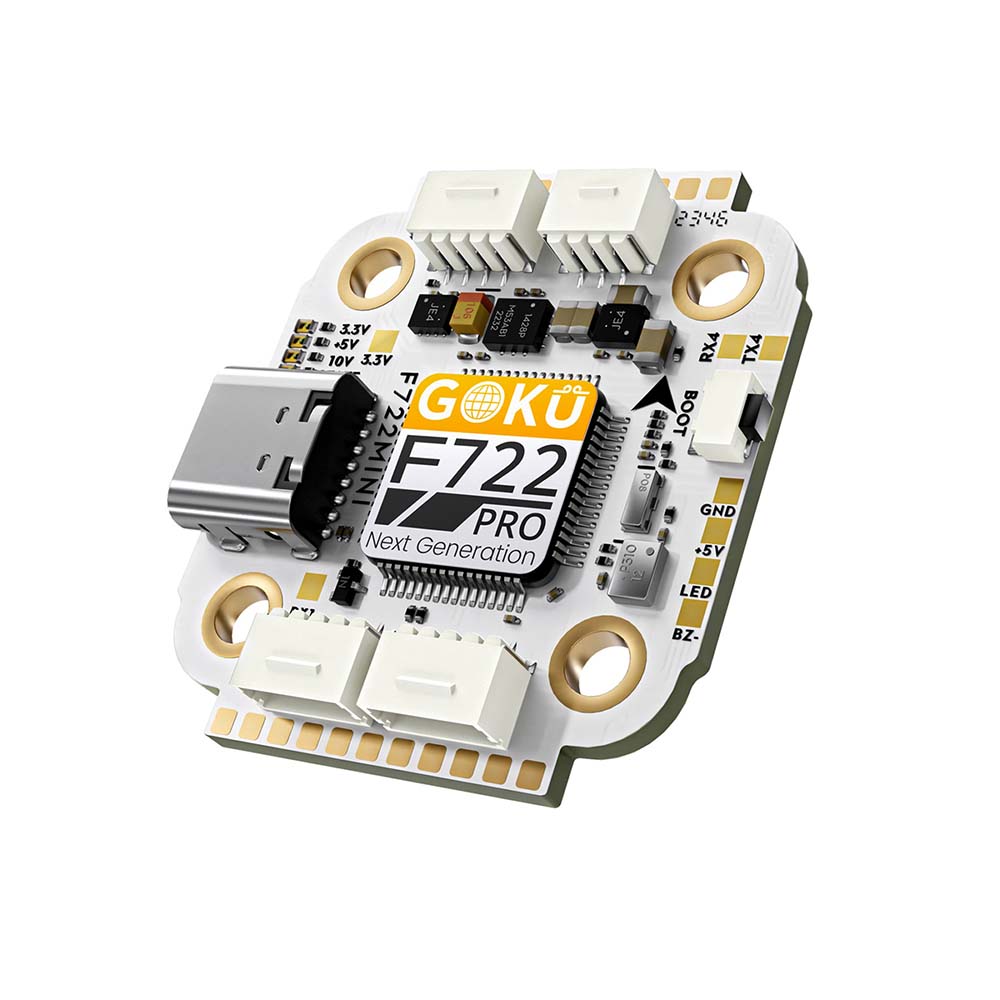

Flywoo GOKU F7 Pro V2 is a powerful flight controller with 20x20mm mounting hole spacing for 4-5" freestyle and racing drones. The flight controller uses a powerful F722 processor combined with a ICM42688 gyro. The board features connectors for easy wiring as well as pads for soldering enthusiasts. There is 16MB of memory for the blackbox, 5V and 10V BEC, 8 outputs for the motors as well as a barometer for height measurement. The 10V BEC is switchable via USER1 mode, which comes in handy in combination with the GPS module, where the video transmitter can be switched off while waiting for satellites.
Wiring schemeKey Features
- Power supply: 2-6S
- MCU: STM32F722
- Gyro: ICM42688
- OSD: AT7456E
- Barometer: DP310
- Blackbox memory: 16MB
- Number of UARTs: 6
- BEC: 10V/2A, 5V/2A
- Mounting holes: 20x20mm M3
- Size: 32x29x20mm
- Weight: 9.9g
- FC Firmware: Betaflight/iNav
Package Includes
- 1x Flight controller
- 1x Cable set
- 1x Softmount set
