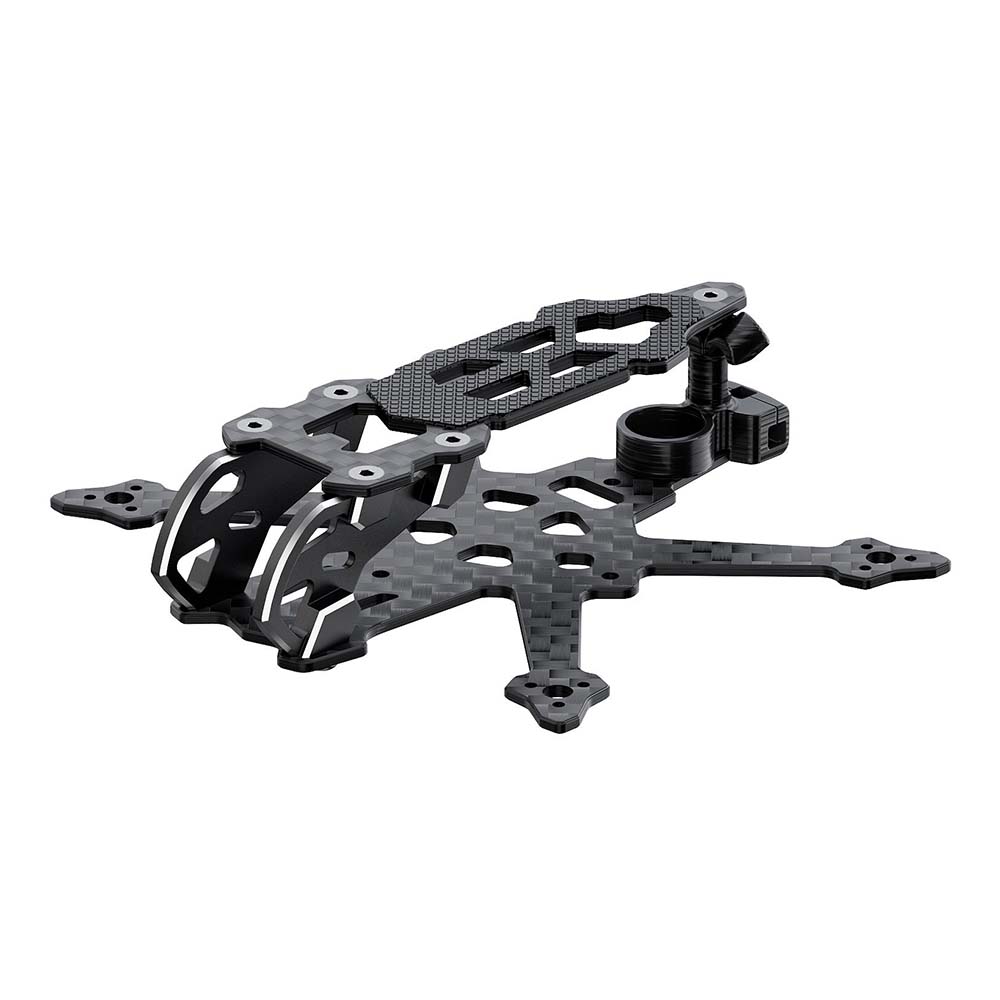

Geprc TC18 is a frame for building a small drone that is suitable for flying outdoors in the garden, in the park, or on the playground, and with care, even in the home or in the gym. The frame can accommodate AIO boards with 25.5x25.5mm mounting holes and nano size cameras. Suitable motors are 0802-1002 in combination with 1-2S battery and up to 45mm propellers. The camera is mounted in aluminum sidewalls. The frame is cut from 1.5mm thick carbon fiber and weighs 11.7 grams.
Key Features
- Diagonal motor spacing: 87mm
- Size: 100x90mm
- Configuration: Wide-X
- Carbon thickness: 1.5mm
- Mounting holes for plate: 25.5x25.5mm
- Height for stack: 12mm
- Mounting holes for motors: 6.6mm M1.4
- Camera size: 14mm (Nano)
- Weight: 11.7g
Package Includes
- 1x Frame
- 1x XT30 connector with cable
- 1x A30 connector with cable
