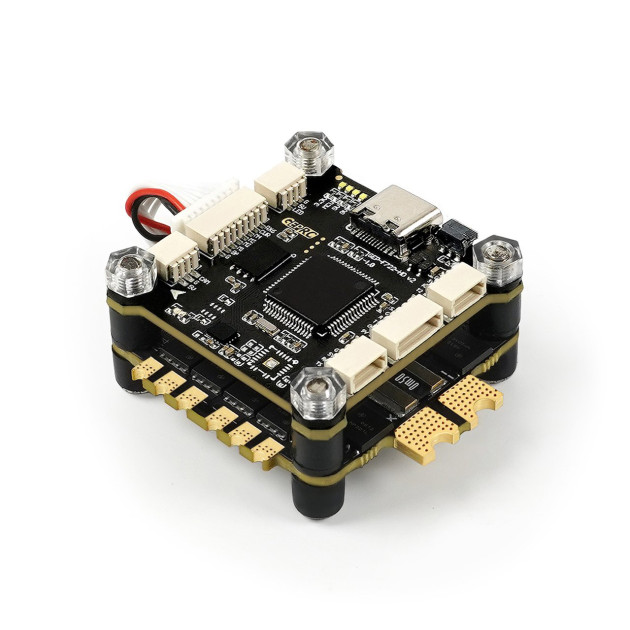

GEPRC Taker F722 + 50A is an affordable stack for freestyle drones. It is based on a flight controller with powerful F722 processor, ICM42688-P gyro, 16MB blackbox memory, integrated LC filter and 9V and 5V BEC. Thanks to the F7 processor, the board can handle 8kHz PID controller frequency. The flight controller features connectors for easy construction with minimal soldering. Conventional solder pads are also available from the bottom of the board. It uses a durable USB-C connector for connection to a PC.
The board is complete with a ESC that can handle current up to 50A. The ESC uses BlHeli_S firmware. It also includes a current sensor.
Key Features
- Input voltage: 3-6S
- Processor FC: STM32F722
- Gyro: ICM42688-P
- Blackbox: 16MB
- BEC: 9V@2,5A, 5V@3A
- Integrated LC filter
- Current: 4x50A
- ESC FW: BlHeli_S
- Current sensor
- Mounting holes: 30.5x30.5mm M3
Package Includes
- 1x Flight controller
- 1x ESC
- 1x Capacitor
- 1x XT60 with cable
- 1x Cable set
- 1x Screw set
- 1x Softmount set
