GEPRC Taker F405 + 65A BLS V2

In Stock
€ 84,69

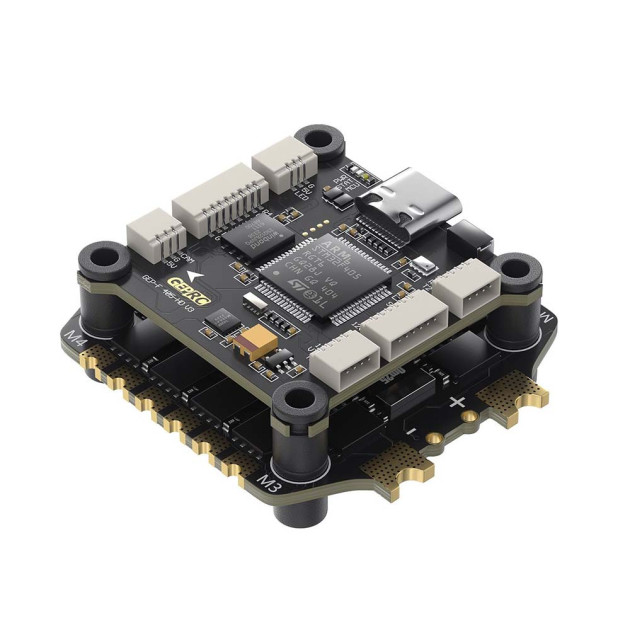

GEPRC Taker F405 + 65A BLS V2 Stack is a combination of a flight controller and a powerful ESC. This stack is suitable for high-performance 5-7" freestyle drones as well as 8-10" long-range drones. The stack supports power input from 3-6S LiPo batteries. The flight controller uses an F405 processor combined with a ICM42688-P gyro. It also features 16MB of memory for blackbox logging, an integrated barometer, and both 5V and 12V BEC. The flight controller has multiple connectors for plug-and-play installation, but also includes solder pads for manual wiring. The ESCs can handle currents up to 65A. They run on BlHeli_S firmware and feature a current sensor. The standalone ESCs also support up to 8S battery input.

Key Features

  • Input Voltage: 3-6S Lipo FC / 3-8S Lipo ESC
  • MCU: STM32F405
  • IMU: ICM42688-P
  • Blackbox: 16MB
  • Number of UARTs: 6
  • BEC: 5V/3A, 12V/2.5A
  • FC Size: 37.15x37.15mm
  • ESC size: 42x45.7mm
  • Mounting holes: 30.5x30.5mm M3
  • Current sensor
  • Maximum current: 65A
  • Firmware ESC: BlHeli_S

Package Includes

  • 1x FC
  • 1x ESC
  • 1x Softmount Kit
  • 1x Cable Kit
  • 1x Capacitor
  • 1x XT60 with cable
