GEPRC ELRS Nano 868M/2.4G Dual-Band

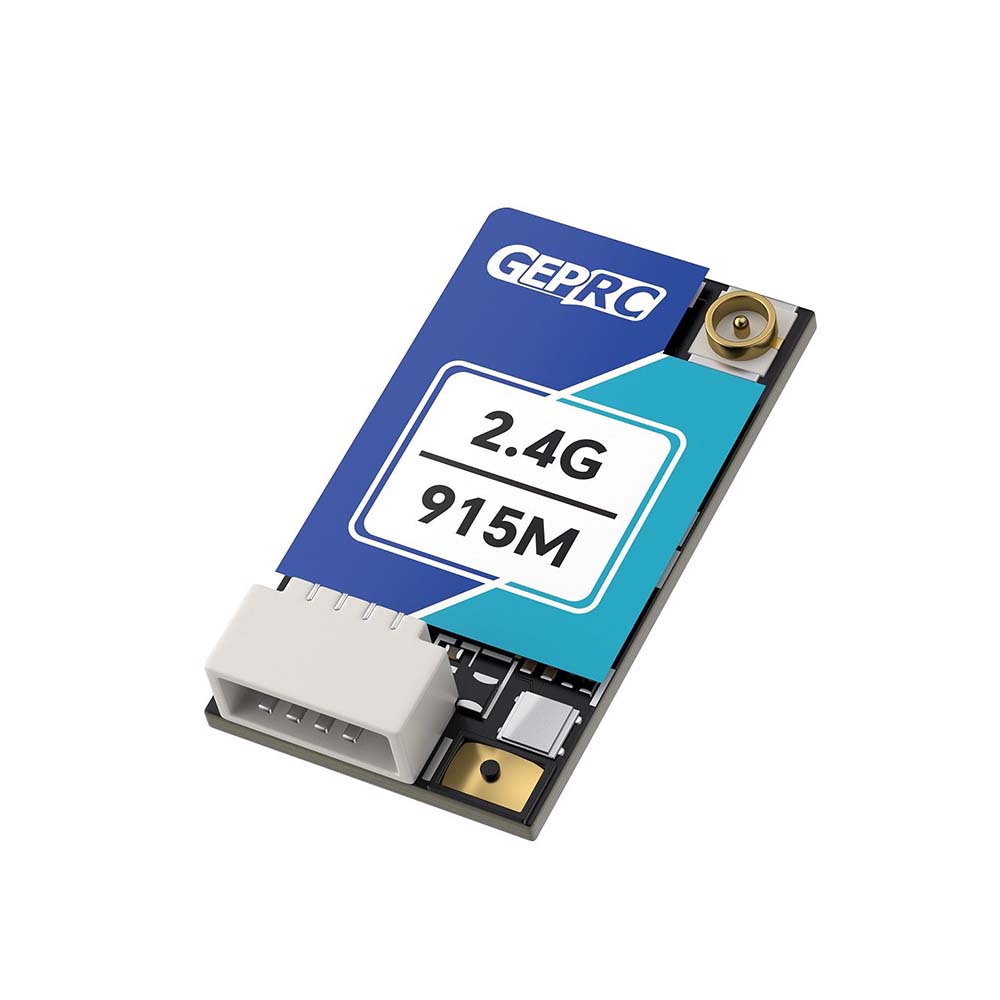

Geprc ELRS Nano 868M/2.4G Dual-Band is a small receiver with a single antenna for the ExpressLRS (ELRS) system. ExpressLRS is an advanced open-source RC system with long range, low latency, high refresh rate, and many useful features. You can learn more about ELRS here.

The receiver uses the Semtech LR1121 chip, which allows operation on 2.4GHz and 868/915MHz frequencies. Due to its single antenna, the receiver cannot receive on both frequencies simultaneously, but the frequency can be easily changed as needed. The 2.4GHz band is ideal for racing and freestyle, offering a fast refresh rate with minimal latency. The 868MHz band, on the other hand, excels in its long-range capability. The receiver is compatible with standard ELRS transmitters that operate only in the 2.4GHz or 868/915MHz bands. The receiver has telemetry power of up to 100mW. It also features a TCXO (temperature-compensated crystal oscillator) for stable RC transmission even with temperature changes.
