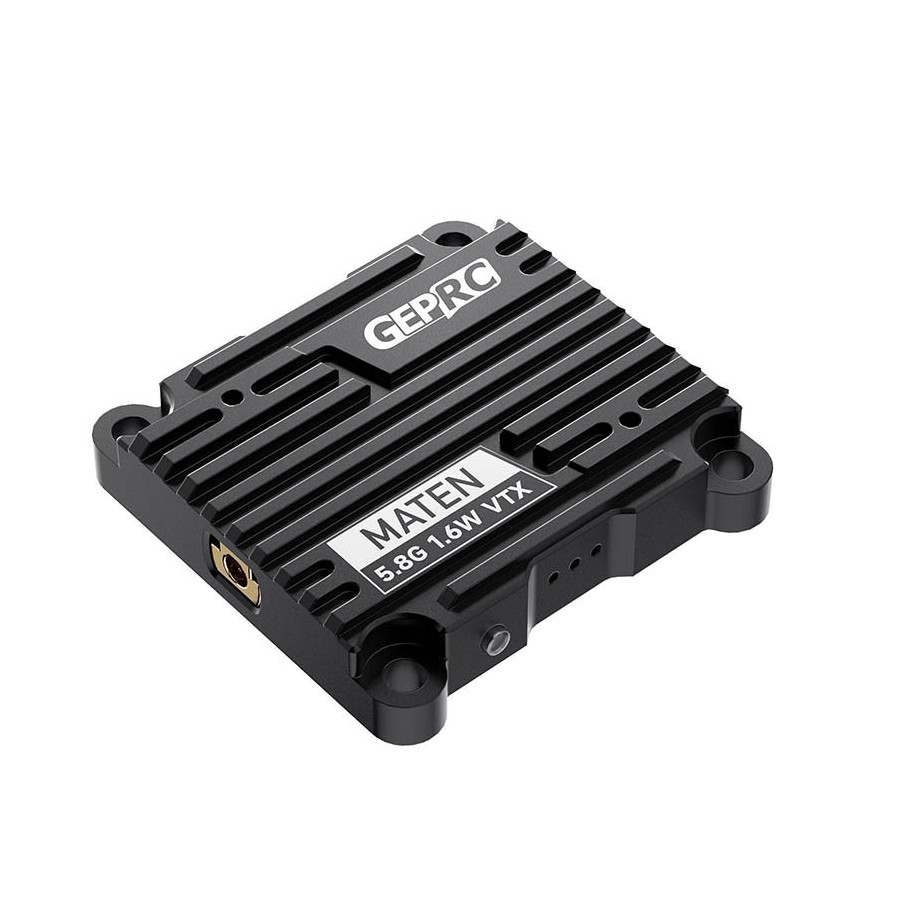

GEPRC Maten is a powerful analog video transmitter for long-range and freestyle drones. Maten has an aluminum heat sink that helps dissipate heat. The aluminum housing also protects sensitive components from dirt or mechanical damage. The VTX also includes protection against possible overheating.
The video transmitter is capable of transmitting up to 1.6W on 72 channels. The video transmitter can be configured using the buttons or more conveniently via the flight controller using the IRC Tramp protocol. Input voltage is in the range of 7-36V. For easy mounting to the frame, the Geprc Maten has mounting holes with a spacing of 30.5x30.5mm. The video transmitter also includes a 5V output for powering the camera.
Do not power the video transmitter without the antenna attached.
Key Features
- Input voltage: 7-36V (2-8S)
- Power: 25/200/600/1600mW
- Protocol: IRC Tramp
- Number of channels: 72
- Mounting holes: 30.5×30.5mm (M3)
- BEC: 5V@600mA
- Built-in microphone
- Antenna connector: MMCX
- Connector: SH1.0 6pin
- Size: 36x36x8mm
- Weight: 17.5g
Package Includes
- 1x Video transmitter
- 1x Linear antenna
- 1x MMCX - SMA pigtail
- 1x Screw set
- 1x Cable
