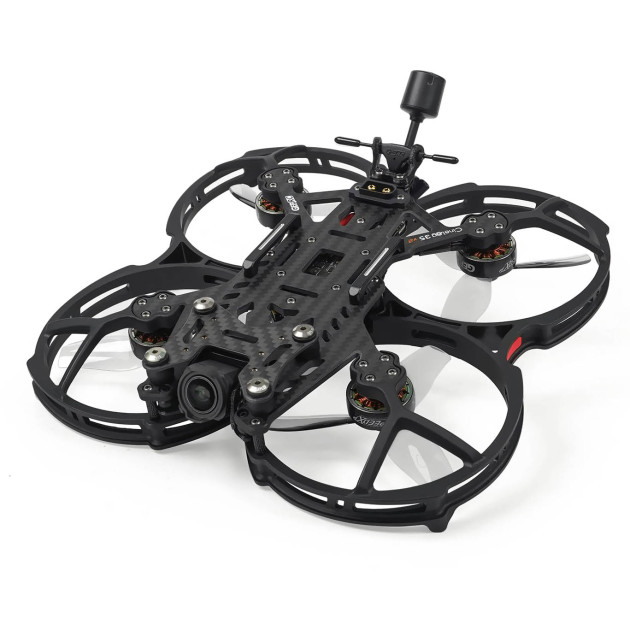

GEPRC Cinelog35 V2 HD O3 - 6S ELRS

GEPRC Cinelog35 is a high-end Cinewhoop for flying with HD camera indoors or near people. Thanks to powerful motors size 2105.5 and 3.5" propellers, the drone can handle carrying a classic large GoPro camera. The Cinelog35 is designed for 6S Lipo batteries of 1000-1300mAh.

The frame is very well crafted and well thought out. There is a HD camera mount and FPV camera mount in the front, which is mounted on rubber softmounts. The camera is thus not exposed to vibrations from the frame, which helps for a better image and better stabilization, which is especially important with the DJI O3 camera. The frame has aluminum parts for attaching the lipo strap, which is not threaded through the controller and does not scratch the components. There is a hardmounted XT60 connector in the rear of the frame. So the battery cables go exactly where they should and are out of reach of the propellers.

Cinelog35 uses a control board GEP-F722-45A AIO, which combines the flight controller with an F722 processor and ICM42688P gyro with 45A ESCs with BlHeli_S firmware. Propulsion is provided by SpeedX2 2105.5 2650Kv motors with HQProp D-T90mm propellers. Video transmission is handled by the DJI O3 digital system.

The drone comes with an ELRS 2.4GHz receiver, but can easily be swapped out for another.
