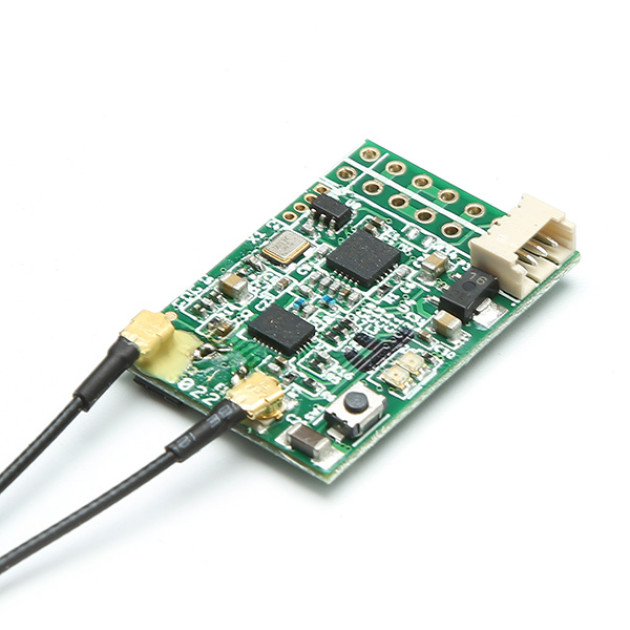

Extra light, 16 channel, telemetry enabled, high range RC receiver. Features S-Port connector, analog AD2 input and S-Bus. Channel output connectors are not soldered in. We also offer a version with those connectors.
Key Features
- Dimensions: 40 x 22,5 x 6 mm
- Weight: 5 g
- No. of channels: 16 (1-3 PWM, 1-16 from the SBUS port)
- Working voltage: 4 - 10 V
- two 150 mm pigtail antennas
- Range: over 1.5 km
- Telemetry: RSSI, battery voltage a S.Port for more telemetry sensors
- RSSI output for OSD display
- Supported modes: D16 (X series, Taranis)
- Upgradeable firmware
Package Includes
Receiver Frsky X4R-SB naked
