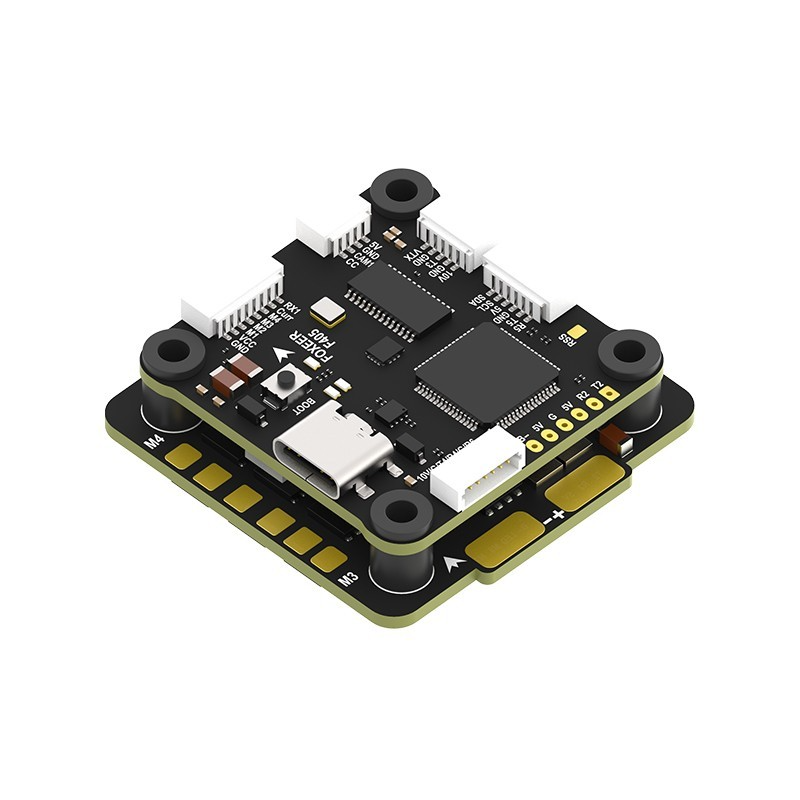

Foxeer F405 V2 + Reaper 55A is a combination of flight controller with ESCs that support 4-8S Lipo batteries. The stack is especially suitable for 5-7" drones. The flight controller uses a F405 processor and a ICM42688-P gyro. The board is also equipped with a DPS310 barometer, 5V and 10V BEC, 64MB memory for blackbox and input for two analog cameras with switch. The board supports 8 motor outputs. With the F405 processor, it can be used with Betaflight and Ardupilot firmware. The flight controller has connectors for connecting GPS, ESC, cameras, and analog
The ESCs can handle current up to 55A (80A burst) and use BlHeli_32 firmware. This supports features such as bidirectional dshot, telemetry or variable PWM frequency.
Key Features
- MCU: STM32F405RGT6
- Gyro: ICM42688-P
- Barometer: DPS310
- Power supply: 4-8S Lipo
- BEC: 5V/3A, 10V/3A
- Blackbox: 64MB
- Number of UARTs: 6
- Motor outputs: 8
- USB: USB-C
- Firmware: Betaflight (FOXEERF405V2), Ardupilot (F405V2)
- FC size: 37x37mm
- ESC size: 42.5x42x5.5mm
- Mounting holes: 30.5x30.5mm M3
- FW ESC: BlHeli_32
- ESC current: 55A (80A short term)
Package Includes
- 1x Flight controller
- 1x ESC
- 1x Softmount Set
- 1x Capacitor
- 1x Cable Set
- 1x Cable with XT60
