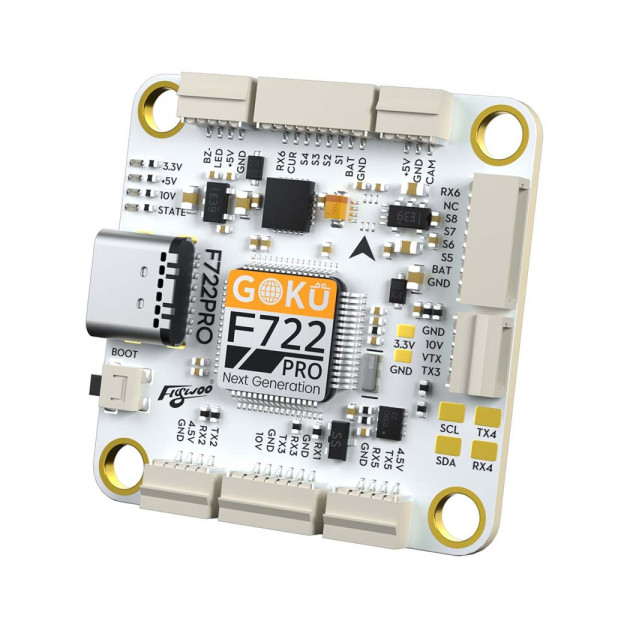

Flywoo GOKU F7 Pro V2 (ICM42688)

Flywoo GOKU F7 Pro V2 powerful flight controller for 5-7" freestyle and long-range drones. The flight controller uses the F722 processor combined with the reliable ICM42688 gyro. There are connectors on the board for easy wiring without soldering. However, solder pads are available from the bottom of the board. There is 16MB of memory for the blackbox, 5V and 10V BEC, 8 outputs for motors as well as a barometer for height measurement. The 10V BEC is switchable via USER1 mode, which comes in handy when combined with the GPS module, where the video transmitter can be switched off while waiting for satellites;

Wiring diagram
