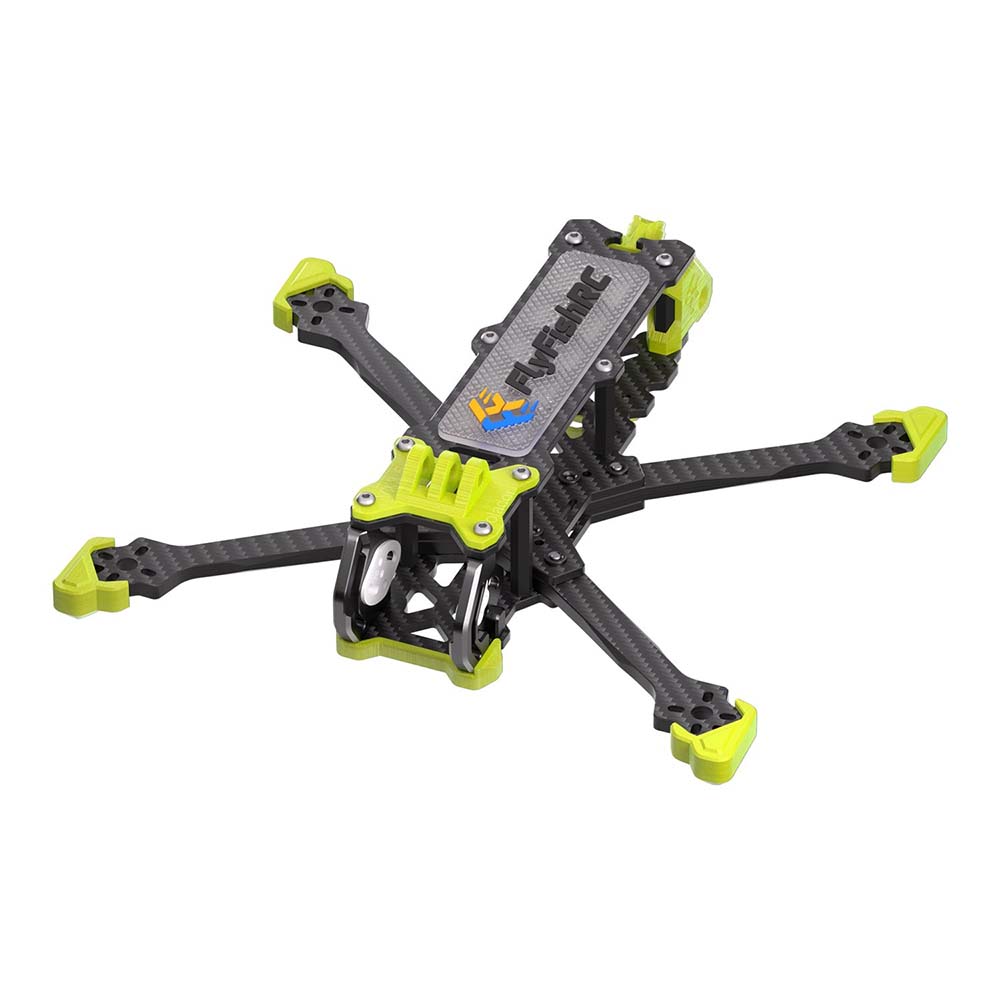

FlyfishRC Volador VX3.5

Flyfish Volador VX3.5 is a precision crafted freestyle frame for 3.5" propellers. The X layout makes the front and rear arms the same. Good symmetrical layout helps good flight characteristics.

The frame is cut from premium T700 carbon, which has better strength than the commonly used carbon (T300). The arms are cut from 3.5mm thick carbon. This not only increases crash resistance, but due to the high strength also less vibration transmission from the motors to the flight controller. The frame is very well made. The edges of the frame are chamfered, so there is no risk of cutting the cable on a sharp edge. The camera is protected by a metal bracket, made of durable 7075 aluminum alloy, which is commonly used on drones to make better motors. The camera itself is then held in a silicone insert, which absorbs vibrations and helps make for better video. There are a number of 3D prints on the frame including an arm protector, GoPro camera mount or antenna. On the top plate, the frame has a silicone pad that increases friction between the frame and the battery and minimizes the chance of the battery slipping out when dropped.

The frame has M2 mounting holes for 20x20mm and 25.5x25.5mm stacks. There is space for a second stack in the rear of the frame. The mounting holes are 20x20mm and 25,5x25,5mm M2. The frame can thus accommodate an analogue transmission as well as a Caddx Vista, Walksnail Avatar or DJI O3.
