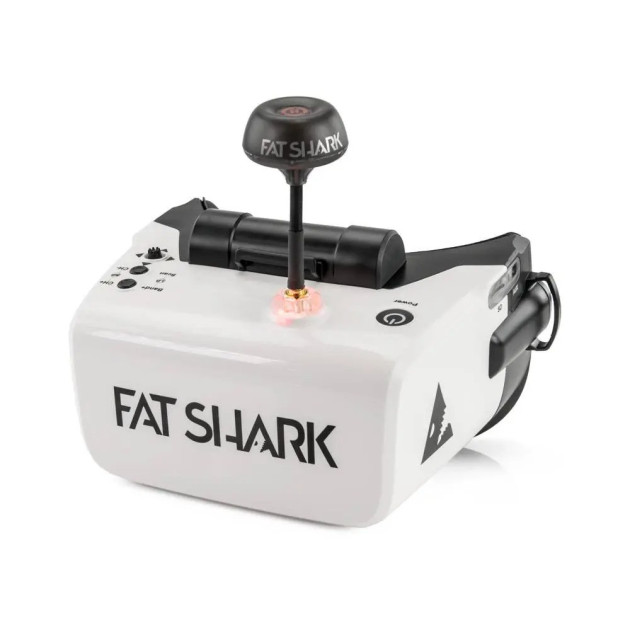

FatShark Scout

Fatshark Scout is an analogue box goggles suitable for beginners and advanced pilots. The goggles are very well equipped. They have a 4" display with a resolution of 1136x640 pixels, a refresh rate of 60fps and a FOV of 50°. The aspect ratio is 16:9. The display is located on the top side of the goggles and displayed via a mirror. The goggles are thus more compact and do not use a Fresnel lens. Thanks to the integrated fan, the goggles do not fog and the image remains clear and sharp. The goggles have a DVR function where the received image can be recorded on a SD card of up to 64GB. The goggles are powered by a single 18650 Liion battery, which can be recharged via the USB-C connector. The battery charge status is indicated by an LED. The battery is included with the goggles. The advantage of the goggles is the built-in diversity receiver, which supports all standard channels. The goggles have an RP-SMA connector for connecting an omnidirectional antenna. A second directional antenna with a gain of 10dBi is installed at the front of the goggles. The goggles support AV-in function and an external video receiver can be connected. An audio output for headphones is also available.
