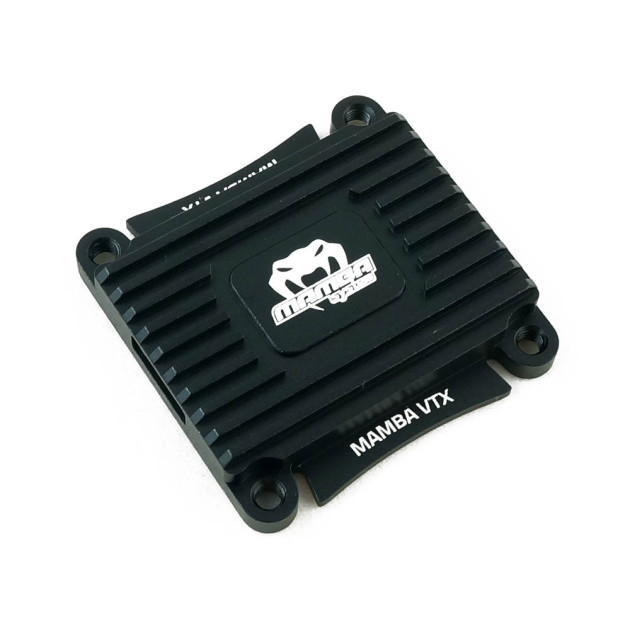

Diatone Mamba Ultra is a powerful video transmitter with up to 2.5W of power. The video transmitter is especially suitable for freestyle and long-range drones. The video transmitter is equipped with an aluminum heatsink that helps dissipate heat while protecting components from mechanical damage. Thanks to the 30.5x30.5mm mounting holes, the video transmitter can be easily installed in the drone. The antenna is connected via a MMCX connector. The video transmitter can be powered directly from the 2-6S battery. Setup is done via a button or via the flight controller using the IRC Tramp protocol.
Key Features
- Power supply: 2-6S Lipo (7-36V)
- Antenna connector: MMCX
- Protocol: IRC Tramp
- Number of channels: 40
- Output power: PIT/25/400/800/1500/2500mW
- Size: 36x36x7.2mm
- Mounting holes: 30.5x30.5mm
- Weight: 14.5g
Package Includes
- 1x Video transmitter
- 1x Linear antenna
- 1x SMA pigtail
- 1x Cable set
