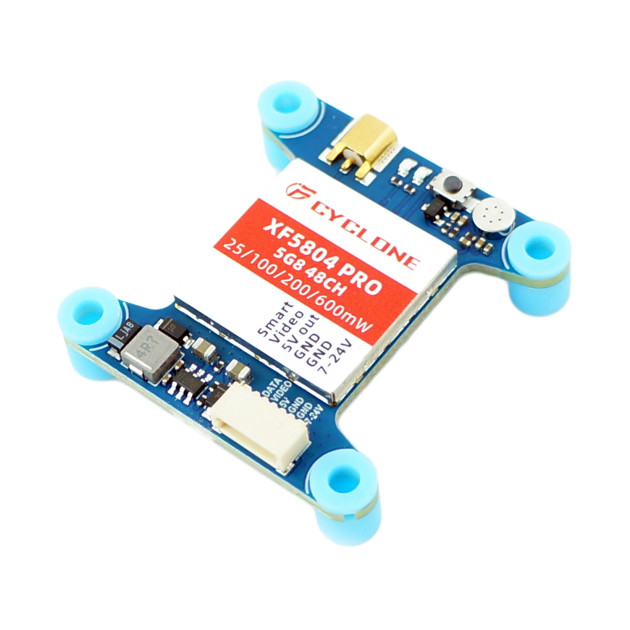

Cyclone XF5804 Pro is a cheap video transmitter designed primarily for freestyle drones. The video transmitter has a switchable power of 25-600mW, which can be set using a button or via the control unit via the Smart Audio protocol. Thanks to the mounting holes 30.5x30.5mm M3, you can easily place it in the stack above the flight controller.

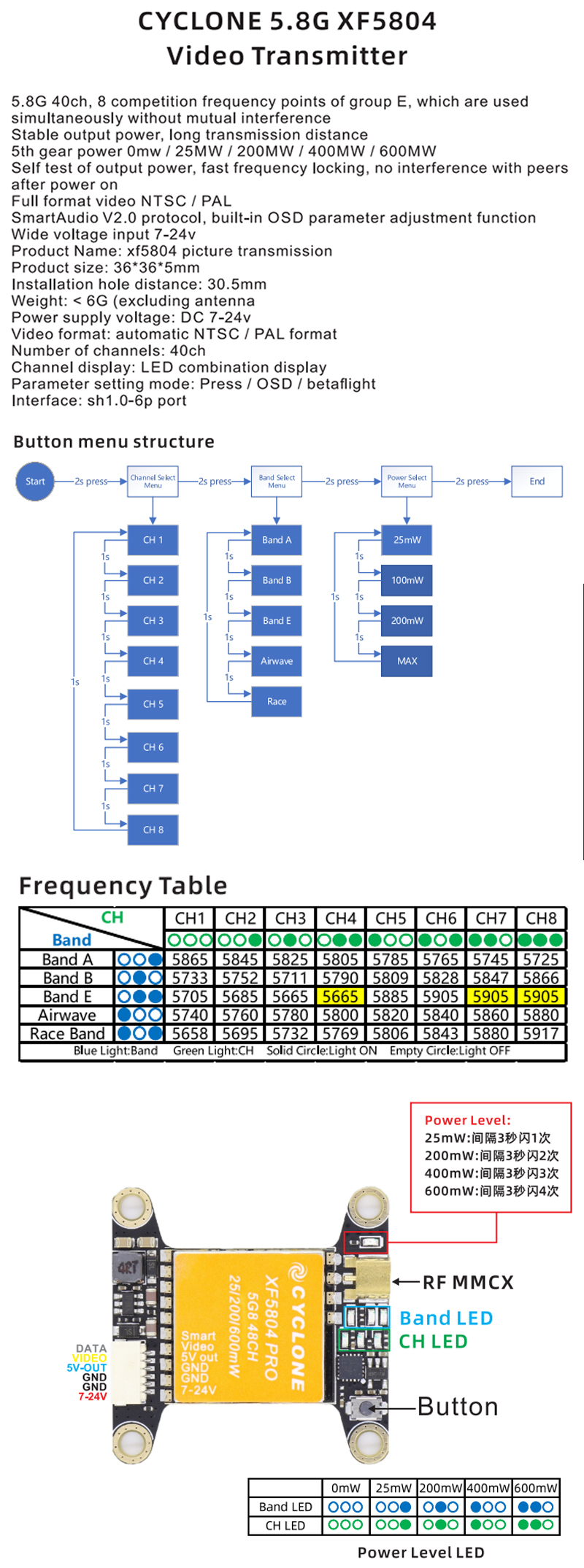

You will find the manual here.
Key Features
- Input voltage: 7-24V
- Size: 36x36x5mm
- Connector: MMCX
- Protocol: Smart Audio
- Number of channels: 40
- Power: 25/200/400 / 600mW
Package Includes
- 1x Video transmitter
- 1x Cable
- 1x Linear antenna
