Axisflying Smurfs 25-1600mW

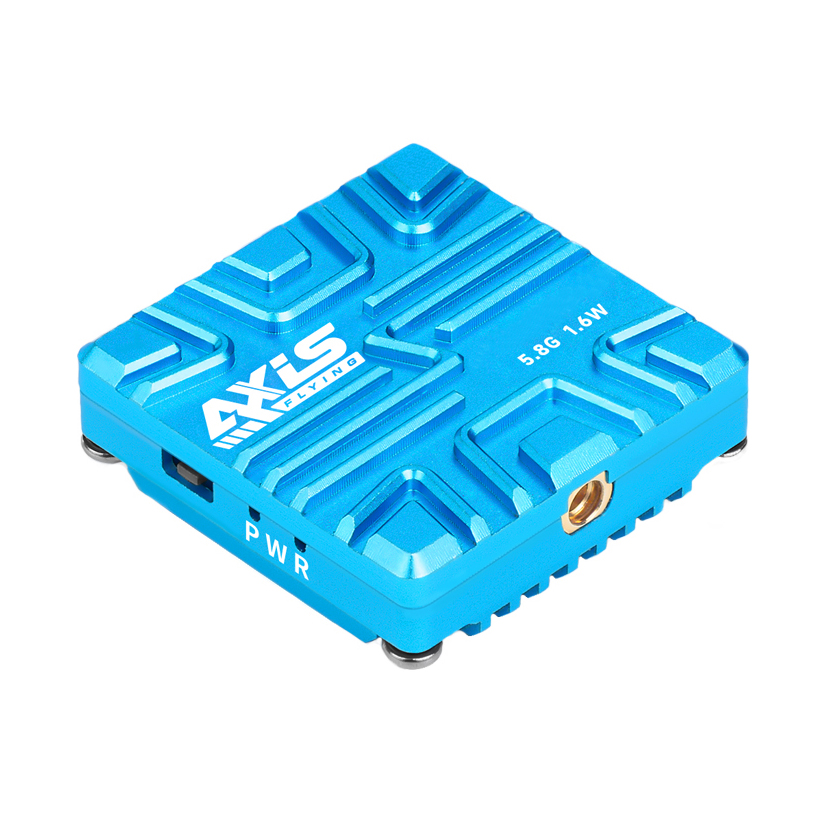

Axisflying Smurfs is an analog video transmitter at 5.8GHz with power up to 1.6W. The entire video transmitter is encased in an aluminum body, which helps dissipate heat. The aluminum heatsink also protects sensitive components from dirt. The video transmitter supports a voltage range of 7-36V and can be powered directly from the 6S battery. There is also a 5V output for possible camera power. Axisflying Smurfs can be controlled by buttons or, more conveniently, via the flight controller using the IRC Tramp protocol. For easy installation in the drone frame, the video transmitter has mounting holes of size M2 and spacing 20x20mm. The antenna is connected via a u.FL connector.
