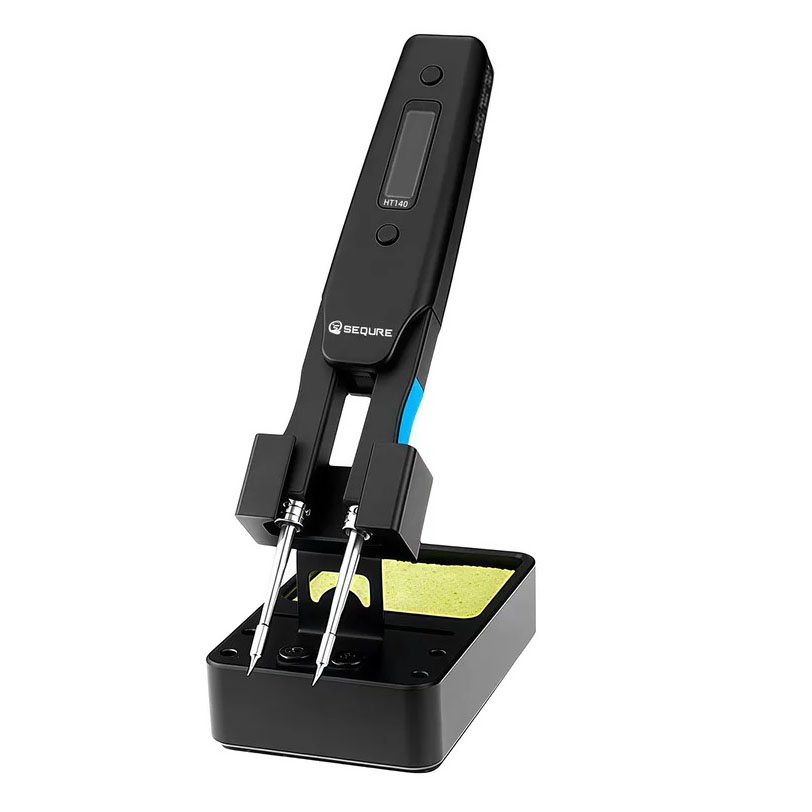

Sequre HT140 is a 2-in-1 soldering tool combining a soldering iron and tweezers in one body weighing 50 g. The Sequre HT140 heats both sides of the tweezers, making it easy to desolder SMD components from printed circuit boards.
Heat tweezers solve the basic problem of traditional desoldering: when using a single soldering iron, you must heat each pin separately, and in the meantime, the component can cool down or the PCB can get damaged. The HT140 heats both pins simultaneously, so you can remove the SMD component in one motion without risking damage to the solder pad.
The power is 140 W. Heating to operating temperature takes only a few seconds. The temperature range is adjustable from 50 to 500 °C. The HT140 has an OLED display showing temperature, voltage, and current, three programmable temperature presets, and auto-sleep after 60 seconds of inactivity, which extends the life of the tips.
Power can be supplied via a USB-C connector (PD3.1/3.0, QC3.0/2.0) or a DC 5.5 x 2.5 connector with a voltage of 5–28 V. The package includes a stand and a handy case.
Key Features
- Power: 140 W
- Power supply: DC 5–28 V / USB-C PD3.1/3.0/2.0 / QC3.0/2.0 /
- Connector: USB-C, DC 5.5 x 2.5
- Temperature range: 50–500 °C
- Display: 128 × 32 OLED
- Tips: IS
- Intelligent standby / sleep / wake
- Temperature calibration and compensation
- Size: 160 × 27 × 17.5 mm
- Weight: 50 g
- Compatible tips: C210 (soldering iron), C120 (SMD tweezers)
User Guides
Package Includes
- 1x HT140 handle
- 1x USB-C cable
- 1x Case
- 1x Set of IS tips
- 1x Stand
